Does the regulator in your radio run hot? Excessive heat from a transistor means the part is undersized for the circuit or that the circuit itself is not very efficient.
Changing the radio’s modulation circuit is impossible. But the solution for this problem is the Palomar MAX-MOD Transistor.

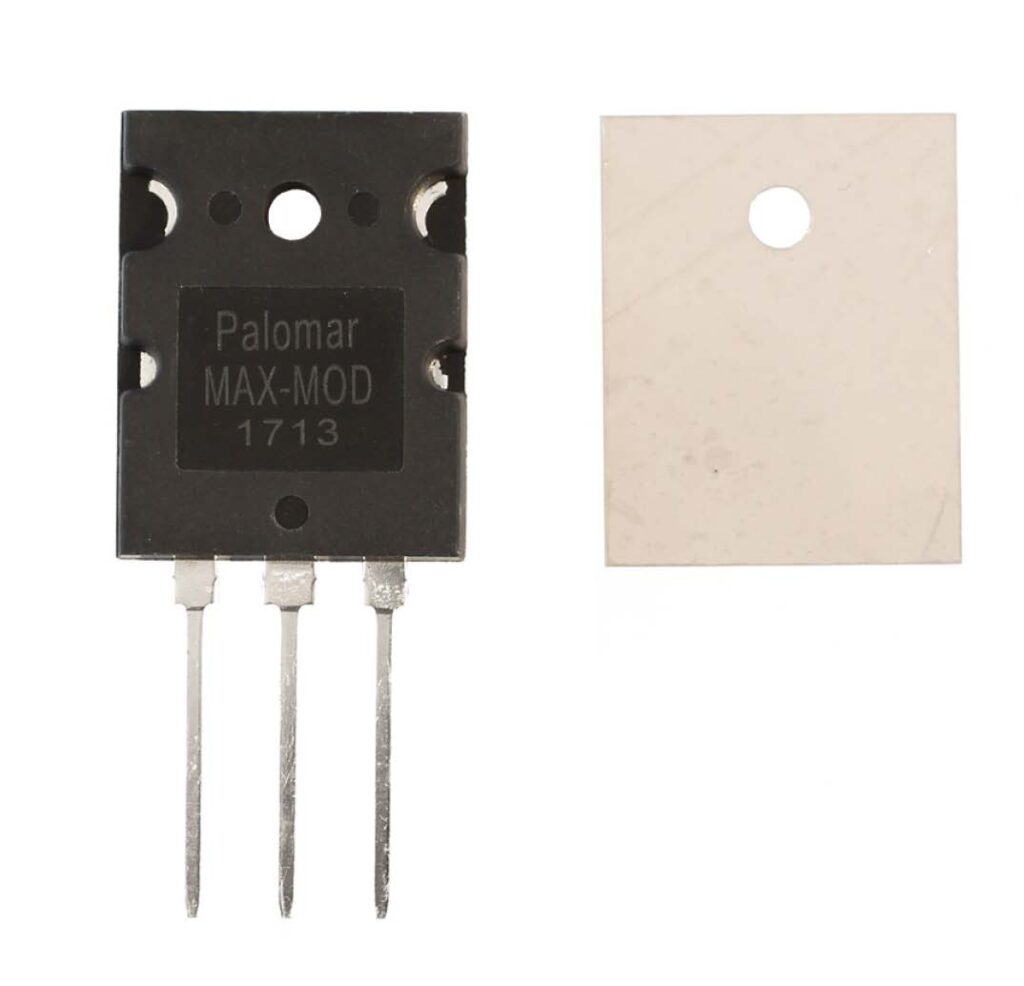

Photo: MAX-MOD transistor including mica insulator
PALOMAR
Palomar is a famous old CB brand name from USA. The name is owned and used now by EKL Components, the mother company also for Magnum Radio’s and Motocomm helmet sets.
New in the Palomar program is the MAX-MOD, a special transistor.
MAX-MOD TRANSISTOR
The MAX-MOD is a replacement and upgrade PNP transistor for the modulation circuit in most radio’s. The MAX-MOD replaces the common 2SB and TIP parts.
The MAX-MOD works very well in 10M radio’s, including President models.
The MAX-MOD will give the RF section the current it needs and will increase the peak power by and average of 10% or more.
The MAX-MOD has the same lead spacing as the smaller transistors it replaces, making soldering very easy. The MAX-MOD uses a hughe TO-3PL package for improved heat dissipation, and comes with a mica insulator so you do not need to try to find one.
The MAX-MOD is available in single pack and 10-pack for technicians.

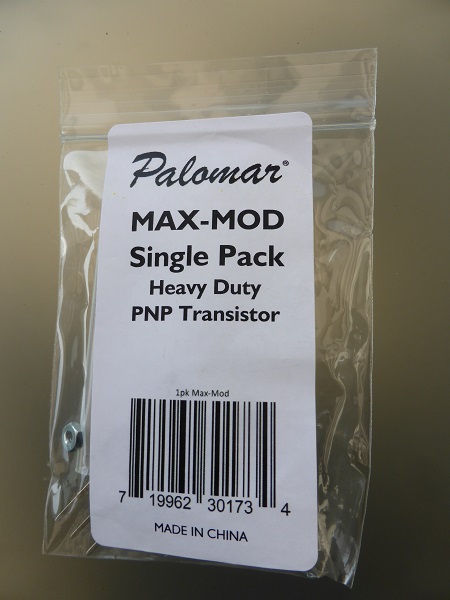

Photo: Palomar MAX-MOD Transistor in single pack
FESATURES OF PALOMAR MAX-MOD TRANSISTOR:
• High Current / High Power PNP Power Transistor (AM Regulator)
• Replaces & Upgrades 2SB688, 2SB754, 2SB817, 2SB827 and other AM
• Regulator Transistors in CB and Amateur Radios
• Supplies Necessary Current Levels for Maximum Modulation
• Most Radios See a 10% Increase in Peak Power Levels
• Runs 40%* Cooler than Stock Regulators
• Massive TO-3PL Package for Improved Heat Dissipation
• Comes with Mica Insulator

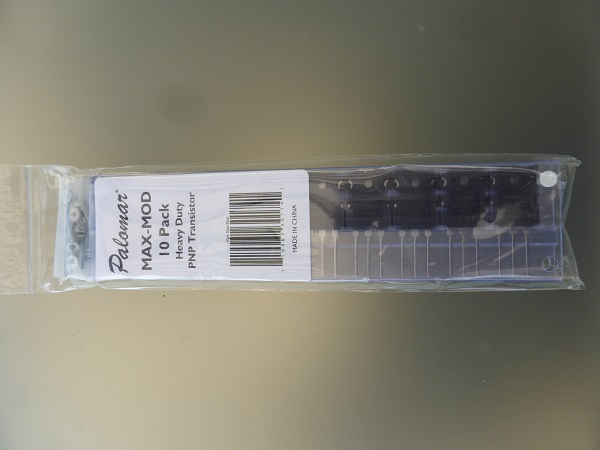

Photo: Palomar MAX-MOD Transistor in 10-Pack
The MAX-MOD Transistor is available from stock at Avera-Distributing.

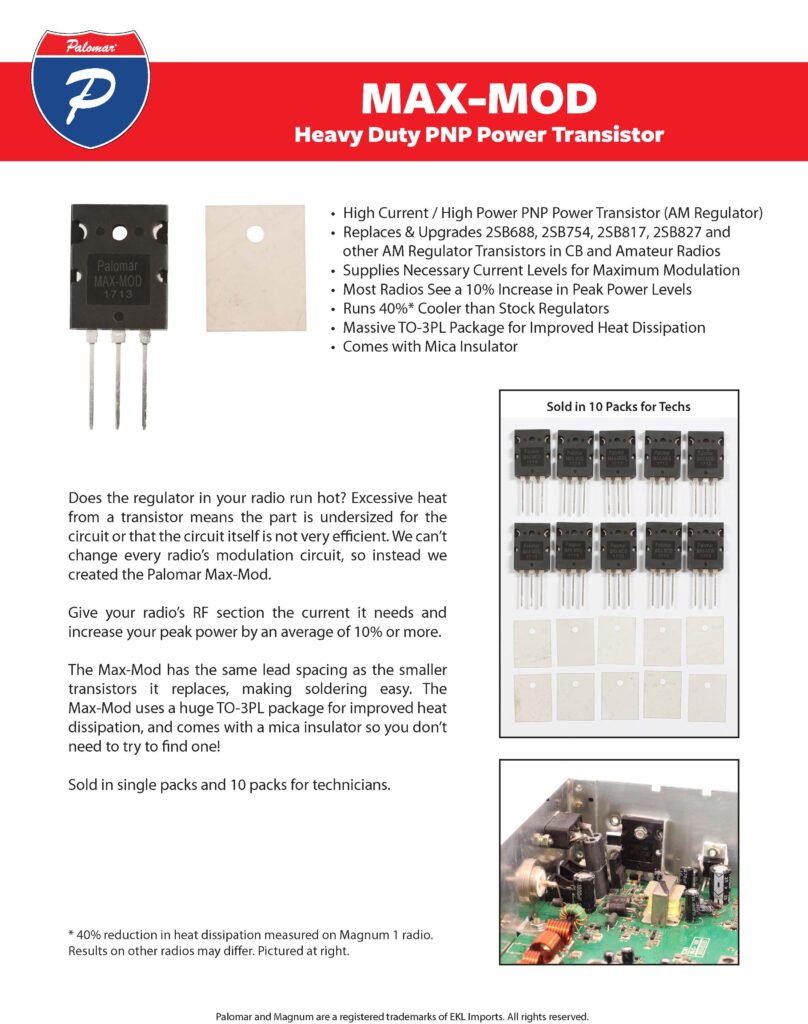

For a datasheet of Palomar MAX-MOD Transistor click here.
